Precision Rotary Table with Angular Contact Bearings

The BT-Series precision mechanical spin tables incorporate pre-loaded angular contact bearings and ground internal shaft to provide an accurate reference axis ideally suited for T.I.R. inspection of workpieces with tolerances to 0.0001"(2.5µm).Since no air supply is required to operate, the BT-Series tables are completely portable and can be conveniently used in any shop or lab.Standard worktable sizes are available in 6", 8", 10" & 12" diameters.

Click here for high-resolution, printable data sheet (141K PDF)

Features

• ±25µ"(±0.63µm) Radial/Axial accuracy
• .0005"(12.5µm) Worktable flatness
• 125lb(57kg) Load capacity - High stiffness
• Worktable sizes: 6", 8", 10", 12" standard
• Durable steel worktable and shaft
• Hole through the center design
• Available with motors, encoders and drives
• Custom sizes available upon request
• Low cost

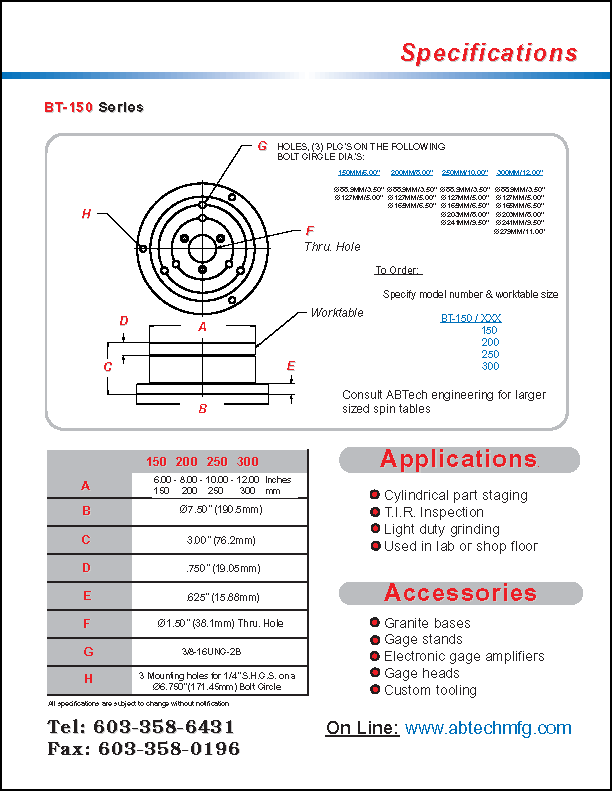

Spec Sheet	Related Products AT Series Air Bearing ABT Series Combination Air/Ball Bearing Driven Table Air Bearing Spindles Lens Alignment Assemblies
