Ultra-Precision Rotary Motion

ABTech, Inc. offers a full line of Ultra-Precision Air Bearing Rotary Tables for applications requiring an Ultra-Precision reference axis such as out-of-roundness, squareness, concentricity, and parallelism measurements. Ideal for precision rotary grinding, optical lens alignment staging and turbine engine component assembly. ABTech's modular design and full engineering services can respond quickly to provide a solution to your O.E.M. requirements for Ultra-Precision rotary motion.

Click here for high-resolution, printable data sheet (141K PDF)

Features

• Five standard sizes from 100mm(4") to 400mm(15.75")
• Four accuracy grades available for cost effective design
• Ultra-smooth motion with absolute repeatablility
• High load capacity and stiffness
• Low air consumption
• Modular design - custom systems can be provided for O.E.M.
• Worktables available to 600mm(23.62")
• Motor drives and tilt/center worktables available
• Custom tooling and fixturing design and manufacturing

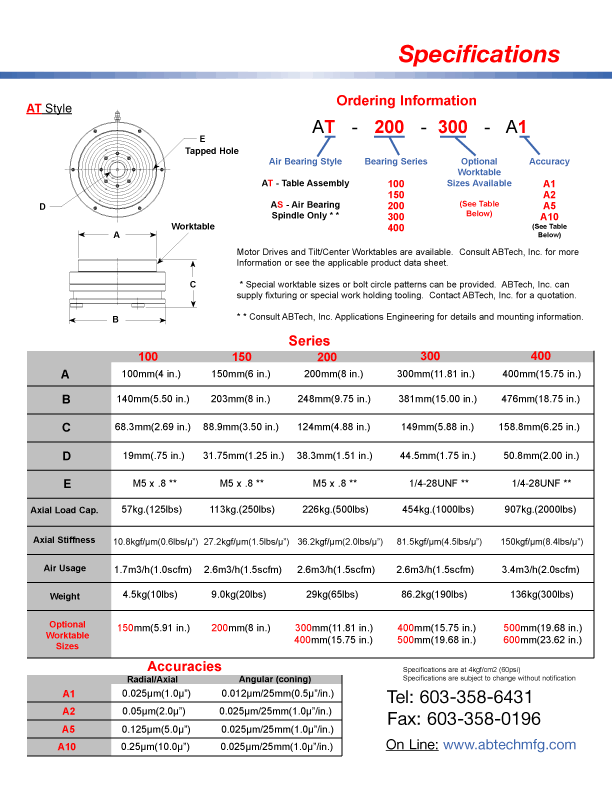

Spec Sheet	Related Products BT Series Ball Bearing ABT Series Combination Air/Ball Bearing Driven Table Air Bearing Spindles Lens Alignment Assemblies
