Precision, Low Profile Rotary Motion

ABTech, Inc. offers a full line of Precision Air/Ball Bearing Rotary Tables for applications requiring precise rotary motion in a low profile configuration. These tables are ideal for staging large diameter work pieces for T.I.R. inspection such as turbine engine component assembly and piece part inspection.

Motor drives are available for variable speed control or indexing. With ABTech's modular design approach our engineering staff can respond quickly to provide a solution to your O.E.M. requirements for precision rotary motion.

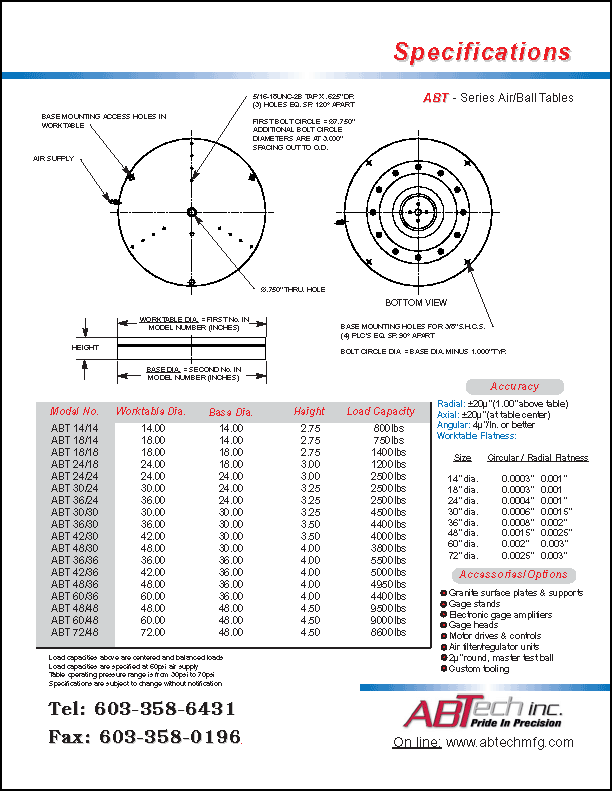

Click here for high-resolution, printable data sheet (141K PDF)

Features

• High load capacities, up to 9500lbs(4309kg)
• Table sizes from 14" Dia. to 72" Dia.
• Air bearing axial thrust
• Ball bearing radial axis
• Radial/axial accuracy: ±20µ"(±0.50µm)
• Smoothness of motion, near frictionless
• Low profiles
• Operates on low air pressure
• Motor drives available
• Encoders available
• Custom tooling and fixturing
