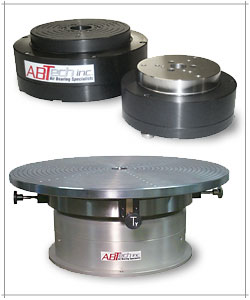

Series AT Air Bearing Spin Tables

ABTech, Inc. offers a full line of Ultra-Precision Air Bearing Rotary Tables for applications requiring an Ultra-Precision reference axis such as out-of-roundness, squareness, concentricity, and parallelism measurements. Ideal for precision rotary grinding, optical lens alignment staging and turbine engine component assembly. ABTech's modular design and full engineering services can respond quickly to provide a solution to your O.E.M. requirements for Ultra-Precision rotary motion.

Click here for high-resolution, printable data sheet (141K PDF)

Features

Five standard sizes from 100mm(4") to 400mm(15.75")
Four accuracy grades available for cost effective design
Ultra-smooth motion with absolute repeatability
High load capacity and stiffness
Low air consumption
Modular design - custom systems can be provided for O.E.M.
Worktables available to 600mm(23.62")
Motor drives and tilt/center worktables available
Custom tooling and fixturing design and manufacturing
