Ultra-Precision Linear Motion

ABTech, Inc. offers a full line of Ultra-Precision Air Bearing Linear Slides for applications requiring Ultra-Precision linear motion, such as linear straightness measurement, linear positioning, high-velocity, constant velocity and linear systems requiring no static friction.

ABTech's modular design approach and full engineering services can respond quickly to provide a solution to your O.E.M. needs for Ultra-Precision linear motion.

The LAB Slides are ideal modular components for wafer scanning systems, computer-to-plate systems, linear measurements systems, and vision systems.

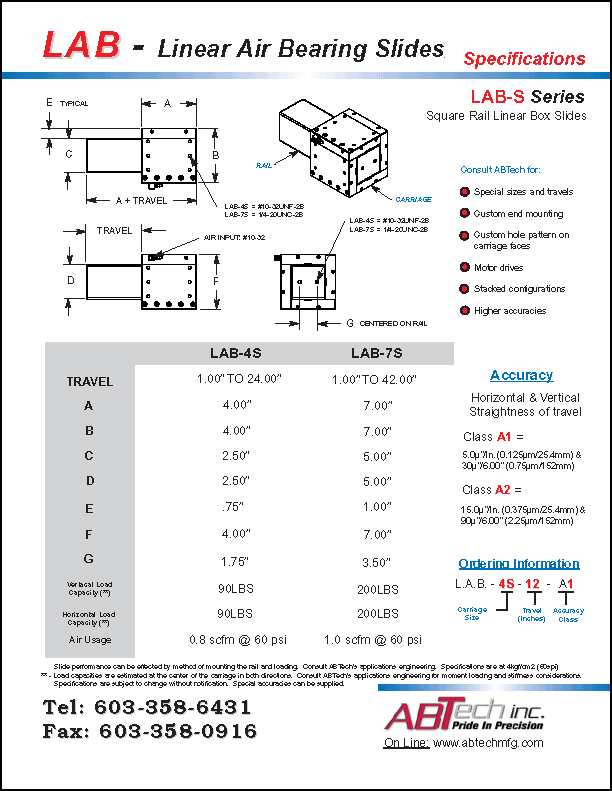

Click here for high-resolution, printable data sheet (344K PDF)

Features

• Two accuracy grades available for cost effective design
• Ultra-smooth motion, no static friction
• High load capacity and stiffness
• Low air consumption
• Modular design - custom systems can be provided for O.E.M.
• Magnetically preloaded, vacuum preloaded
• Motor drives, encoders, drive amplifiers and controls
• Custom tooling and fixturing design and manufacturing
• Rail configurations in dovetail, rectangular or square
