| |  Ultra-Precision/High Stiffness Direct Drive Rotary Axis
ABTech's Ultra-precision HRT-Series rotary tables combined with high torque brushless DC servo motors, digital drives, and high resolution rotary encoders provide the highest performing direct drive rotary tables on the market.
The 440C hardened stainless & electroless nickel plated steel bearing components provide excellent way surfaces and machine tool durability for these ultra-stiff rotary tables.
ABTech incorporates a modular design approach which includes turn-key engineering solutions for the end user.

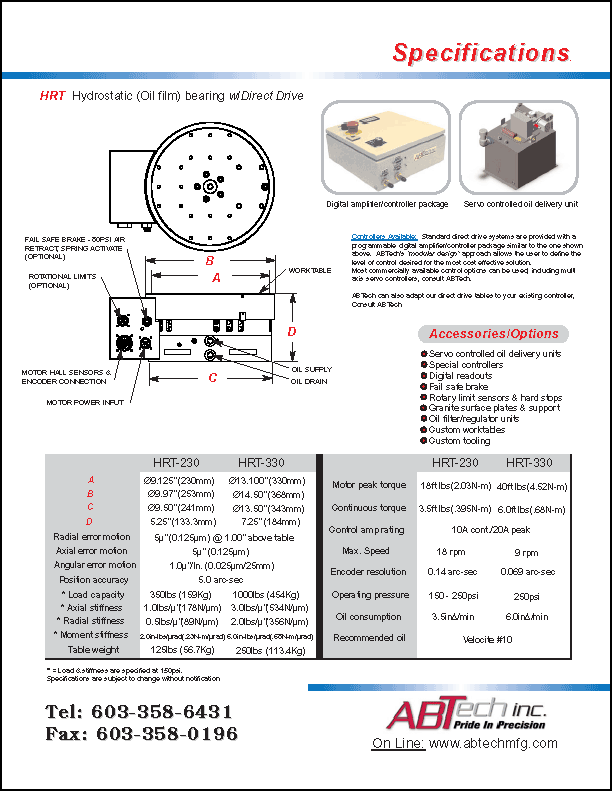

These tables are ideal as an additional axis in diamond turning/milling applications, as well as heavy duty positioning, machining, grinding, and more. Click here for high-resolution, printable data sheet (141K PDF) Features - "Zero" static friction
- Ultra-smooth motion with absolute repeatability
- Durable 440C stainless steel construction
- High load capacity and stiffness
- Non-contact drive (no drive train parts to wear)
- High torque brushless DC motors
- Sinusoidal or trapezoidal commutation
- 3-phase from 120VAC Line
- High resolution optical encoder
- Modular design
- Digital drive amplifier/controller
- Programmable (RS-232 serial)
- Optional user interfaces
- Digital readouts
- Variable speed control
- Optional multi-axis servo controllers
- Full 360° rotation or partial rotation w/ limits and hard stops
- Fail safe brake
- Servo controlled closed loop oil delivery systems available
- Custom tooling
| |
