 Precision Clear Aperture X-Y Stages
ABTech, Inc. offers this open frame mechanical X-Y Ball Stage for use in vision inspection systems and other optical applications requiring a clear aperture design with precision repeatability of motion. Bi-directional position repeatability is ±.0001"
ABTech's attention to detail through out manufacturing and assembly result in a superior performing mechanical bearing stage.

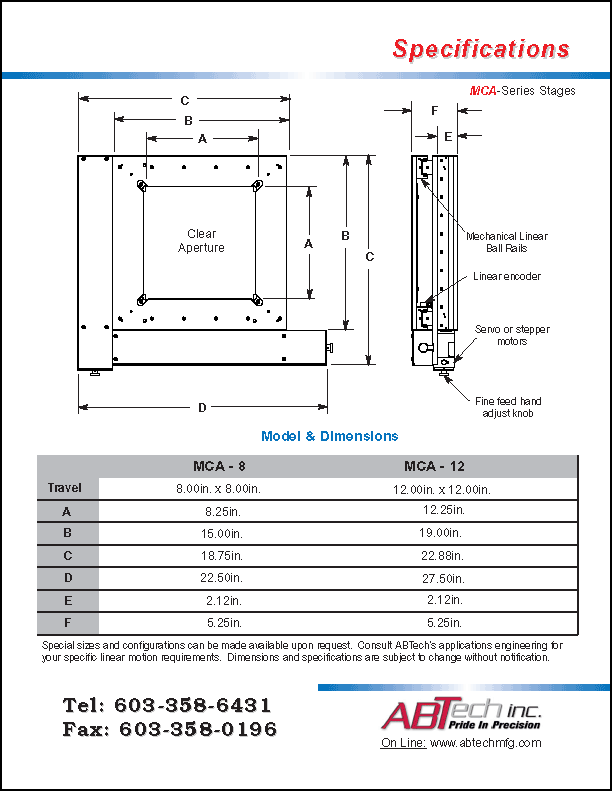

The MCA X-Y Stage is available in two basic travel sizes, 8.00" travel and 12.00" travel. Addition sizes can be made available upon request. Click here for high-resolution, printable data sheet (152K PDF) Features - Travels available in 8.00" and 12.00" as standard
- Bi-directional repeatability: ±.0001"
- High load capacity and stiffness
- Precision ball screw drive
- Servo motor or stepper motors
- Linear or rotary encoders
- Drive amplifiers & controllers
- Modular design - custom systems can be provided for O.E.M.
- Complete machine bases in natural granite
- Air bearing slides available
|
